MNCF658拖令扁电缆

https://mna-cable.com/web/image/product.template/11/image_1920?unique=dea442d
Flexibility, bendability, high tensile strength, tear resistance, stable performance, good oil resistance, wear resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use

£ 1.00 1.0 GBP £ 1.00

不可用于销售

此组合不存在。


STRUCTURE

  •    Conductor:Fine-stranded Oxygen-free copper wire complies with GB/T 3956-2008 Class 5 or 6  standard.
  •    Insulation:Special soft elastomeric insulation

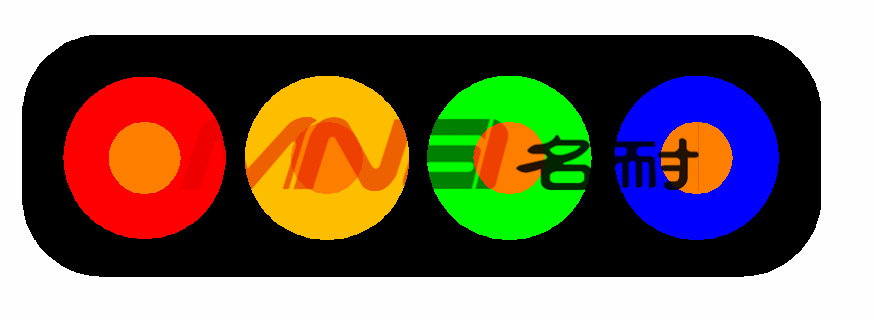

  •    Structure:In a single line or quincuncial pattern
  •    Outer Sheath:Special wear-resistant, oil-resistant NBR sheath
  •    Reinforced layer:Aramid braided reinforcement layer
  •    Sheath Color:Black or grey
SPECIFICATION

Rated voltage U0/U  0.6/1kV
Tested voltage 3500V
Minmum bending radius(Fixed laying)5 X D(Cable outside diameter)
Minmum bending radius(Mobile installation)10 X D(Cable outside diameter)
Operating Temperature(Fixed laying) -40℃ to +90℃
Operating Temperature(Mobile installation) -30℃ to +90℃
Flame Retardant StandardComply with IEC60332-1 standard
Maximum tension 20N/mm²
Max.Speed 120m/min

APPLICATION

 The cable is designed with a flexible flat structure, suitable for cable towing trolleys, gantry cranes, mobile cranes, rack-type conveyors, transportation equipment and machine tools that are suitable for frequent bending and back-and-forth movement. It can withstand moderate stress and can be used in dry or humid indoor or outdoor environments.
