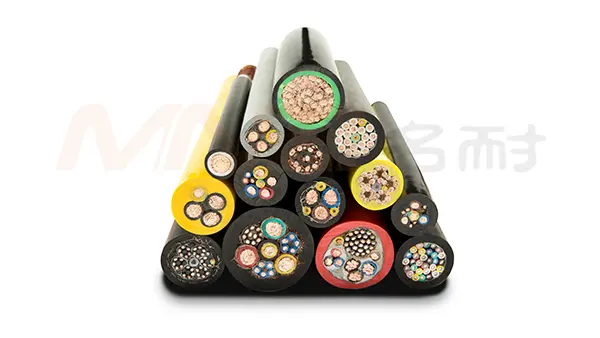

MNCF655拖令圆电缆(重型）
Flexibility, bendability, tensile strength, tear resistance, stable performance, excellent oil resistance, wear resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
STRUCTURE
- Conductor：Fine-stranded Oxygen-free copper wire complies with VDE0295 Class 5 standard.
- Insulation：Special elastomeric insulation
- Structure：Grouped short-lay length stranding,central/edge filled tensile strength member
- Inner Sheath：(if have)Special wear-resistant, oil-resistant NBR sheath
- Outer Sheath：Special wear-resistant, oil-resistant PUR sheath
- Reinforced layer：Aramid braided reinforcement layer
- Sheath Color：Black or yellow
SPECIFICATION
| Rated voltage | U0/U 0.6/1kV |
| Tested voltage | 3500V/5min |
| Minmum bending radius(Fixed laying) | 5 X D(Cable outside diameter) |
| Minmum bending radius(Mobile installation) | 10 X D(Cable outside diameter) |
| Operating Temperature(Fixed laying) | -40℃ to +90℃ |
| Operating Temperature(Mobile installation) | -30℃ to +90℃ |
| Flame Retardant Standard | Comply with IEC60332-1 standard |
| Maximum tension | 15N/mm² |
| Max.Speed | 180m/min |
APPLICATION
Suitable for cable towing trolleys, gantry cranes, mobile cranes, rack-type conveyors, transportation equipment and machine tools, etc. which are suitable for frequent bending and back-and-forth movement. It can withstand moderate stress and can be used in dry or humid indoor or outdoor environments.
