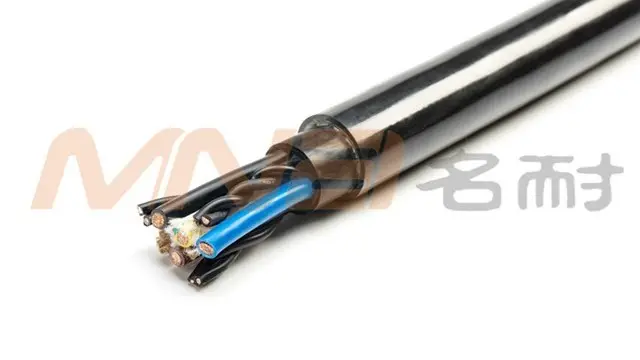

MNCF641低压卷盘电缆(轻型)

https://mna-cable.com/web/image/product.template/9/image_1920?unique=464d919
Flexibility, bendability, high tensile strength, tear resistance, high wear resistance, good oil resistance, wear resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use

£ 1.00 1.0 GBP £ 1.00

不可用于销售

此组合不存在。

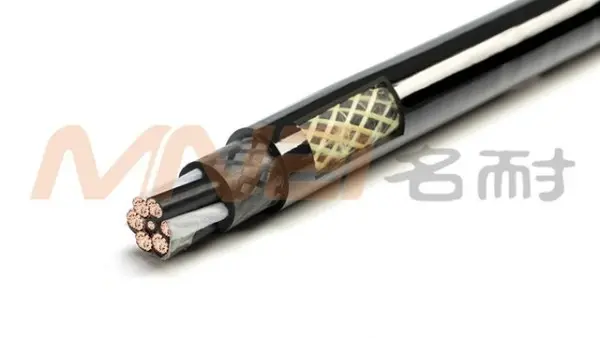

STRUCTURE

  •    Conductor:Fine-stranded Oxygen-free copper wire complies with GB/T 3956-2008 Class 5 standard.
  •    Insulation:Special elastomeric insulation
  •    Structure:Grouped short-lay length stranding,central/edge filled tensile strength member
  •    Inner Sheath:Special wear-resistant, oil-resistant NBR/PUR sheath
  •    Outer Sheath:Special wear-resistant, oil-resistant PUR sheath
  •    Reinforced layer:Aramid braided reinforcement layer
  •    Sheath Color:Black or yellow
SPECIFICATION
Rated voltage U0/U  0.6/1kV
Tested voltage 3500V/5min
Minmum bending radius(Fixed laying)5 X D(Cable outside diameter)
Minmum bending radius(Mobile installation)10 X D(Cable outside diameter)
Operating Temperature(Fixed laying) -40℃ to +90℃
Operating Temperature(Mobile installation) -30℃ to +90℃
Flame Retardant StandardComply with IEC60332-1 standard
Maximum tension 15N/mm²
Max.Speed 120m/min

APPLICATION

Suitable for wear-prone environments; connection and control cables for reel machines, conveyors and conveying machinery. Also can be used as reels and towing cables in drag chain systems, moving and retracting along the guide of the supporting shaft or other similar devices. Suitable for applications with moderate mechanical stress and with tension and torsion stress.
