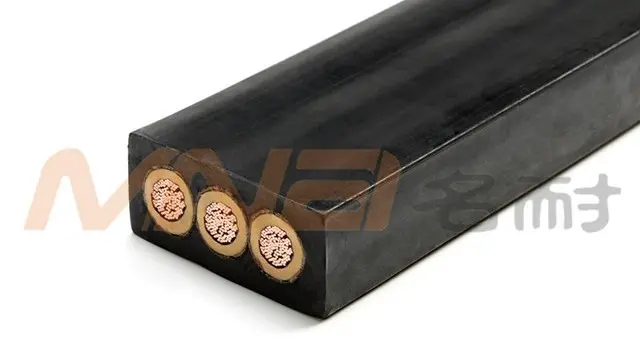

MNCF638斗轮机中压卷盘电缆
Tensile strength, tear resistance, stable performance
Good oil resistance, wear resistance, cold resistance and weather resistance.
Good oil resistance, wear resistance, cold resistance and weather resistance.

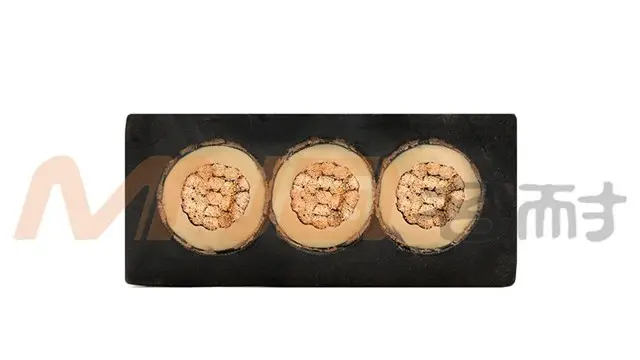

STRUCTURE
- Conductor：Fine-stranded tinned copper wire complies with GB/T 3956-2008 Class 5 standard.
- Conductor Screen：Each core helically wrapped with semi-conducting tape
- Insulation：High-Strength ethylene propylene rubber insulation
- Insulation Screen：Each core helically wrapped with semi-conducting tape + Tinned wire braid
- Earth Wire：Each core is made of tinnned wire braid and the density is over 80%
- Optical Fiber：Single-Mode Fiber / Multi-Mode Fibe 4-24 cores(50/125 , 62.5/125 and E9/125)
- Core wire structure：Short-lay length stranding
- Reinforced layer：Aramid braided reinforcement layer
- Outer Sheath：Wear-resistant, oil-resistant PUR or rubber sheath
- Sheath Color：Black
SPECIFICATION
| Rated voltage | U0/U 3.6/6kV-12/20kV |
| Tested voltage | 3.5Uo |
| Minmum bending radius(Fixed laying) | 5 X D(Cable outside diameter) |
| Minmum bending radius(Mobile installation) | 10 X D(Cable outside diameter) |
| Operating Temperature(Fixed laying) | -40℃ to +90℃ |
| Operating Temperature(Mobile installation) | -30℃ to +90℃ |
| Flame Retardant Standard | Comply with IEC60332-1 standard |
| MN6090105030 | 30G1.5 |
| MN6090105036 | 36G1.5 |
| MN6090105042 | 42G1.5 |
| MN6090205004 | 4G2.5 |
APPLICATION
The product is applied to the reel equipment needed in bucket-wheel excavators and is used in ports, docks, metallurgy, steel, coal mines, power plants, cement plants and other places.
