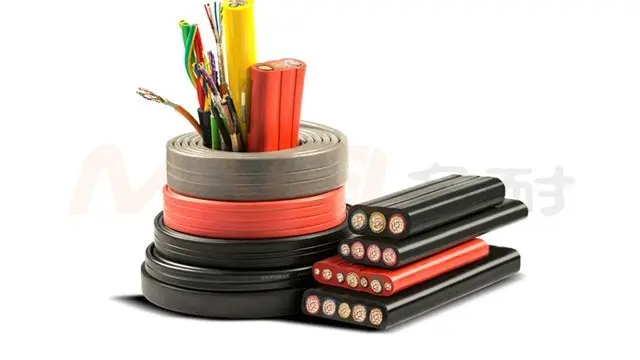

0.6/1KV斗轮机卷盘扁电缆

https://mna-cable.com/web/image/product.template/7/image_1920?unique=23d7d02
Tensile strength, tear resistance, stable performance, good oil resistance, wear resistance, cold resistance and weather resistance.

£ 1.00 1.0 GBP £ 1.00

不可用于销售

此组合不存在。

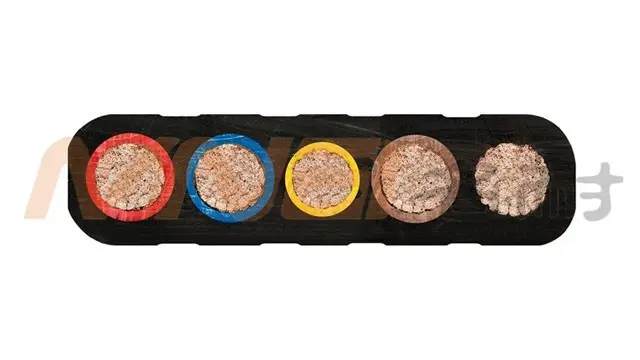

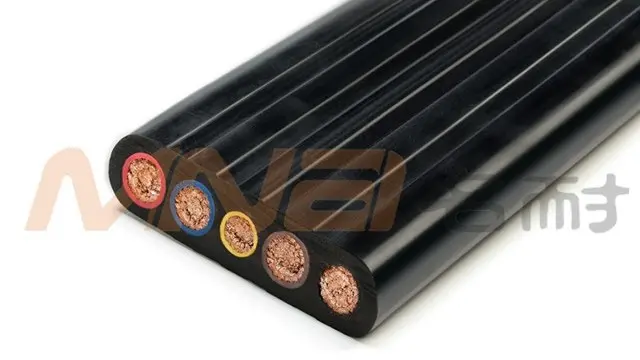

STRUCTURE

  •    Conductor:Fine-stranded Oxygen-free copper wire complies with GB/T 3956-2008 Class 5 standard.
  •    Insulation:Special elastomeric insulation
  •    Optical Fiber:Single-Mode Fiber / Multi-Mode Fibe 4-24 cores(50/125 , 62.5/125 and E9/125)
  •    Core wire structure:In a single line
  •    Outer Sheath:Special wear-resistant, oil-resistant compounded NBR sheath
  •    Sheath Color:Black or Grey


SPECIFICATION
Rated voltage U0/U 3.6/6kV-12/20kV
Tested voltage 3.5Uo
Minmum bending radius(Fixed laying)5 X D(Cable outside diameter)
Minmum bending radius(Mobile installation)10 X D(Cable outside diameter)
Operating Temperature(Fixed laying) -40℃ to +90℃
Operating Temperature(Mobile installation) -30℃ to +90℃
Flame Retardant StandardComply with IEC60332-1 standard

APPLICATION

The product is applied to the drum or reel equipment needed in bucket-wheel excavators and is used in ports, docks, metallurgy, steel, coal mines, power plants, cement plants and other places.


CERTIFICATION
