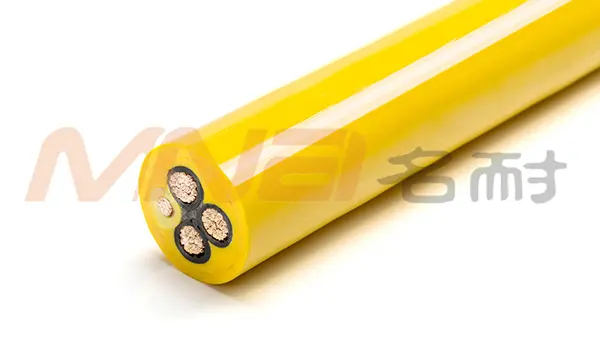

Specialized Cables For Electric Backhoe Loaders
High tensile strength, high tear resistance, high wear resistance, excellent oil resistance, wear resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use
STRUCTURE
- Conductor：Fine-stranded Oxygen-free copper wire complies with VDE0295 CLASS 5 standard.
- Insulation：Special high-strength elastomeric insulation
- Structure：Grouped short-lay length stranding,central/edge filled tensile strength member
- Inner Sheath：Special wear-resistant, oil-resistant NBR/ PUR sheath
- Outer Sheath：Special wear-resistant, oil-resistant PUR sheath
- Reinforced layer：Aramid braided reinforcement layer
- Sheath Color：Black or yellow
SPECIFICATION
| Rated voltage | U0/U 0.6/1kV |
| Tested voltage | 3500V/5min |
| Minmum bending radius(Fixed laying) | 5 X D(Cable outside diameter) |
| Minmum bending radius(Mobile installation) | 10 X D(Cable outside diameter) |
| Operating Temperature(Fixed laying) | -40℃ to +90℃ |
| Operating Temperature(Mobile installation) | -30℃ to +90℃ |
| Flame Retardant Standard | Comply with IEC60332-1 standard |
| Maximum tension | 25N/mm² |
| Max.Speed | 180m/min |
APPLICATION
The electric shovel conveyor cables are mostly used underground. As the equipment moves, the cables will suffer varying degrees of wear and tear, stretching and abrasion. Most of the wear is caused by contact with the ground. The outer protective layer of the cables has extremely high wear resistance. During the operation of the shovel conveyor, it will move forward, shift horizontally or retract. The cables will be subjected to tension and torsion forces during this process.
