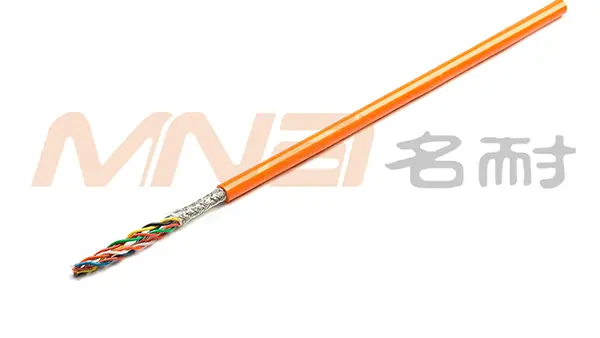

Screened Chain Cable for Port Machinery
Tensile strength, tear resistance, stable performance
Good oil resistance, wear resistance, cold resistance and weather resistance.
Good oil resistance, wear resistance, cold resistance and weather resistance.
STRUCTURE
- 导体：多股精绞镀锡铜 符合GB/T 3956-2008 5类标准
- 导体屏蔽：每芯绕包半导电带
- 绝缘：高强度乙丙绝缘
- 绝缘屏蔽：每芯绕包半导电带+镀锡丝编织
- 地线：每芯线镀锡丝编织，密度80%以上
- 光纤：单模/多模光纤4-24芯（50/125、62.5/125和E9/125）
- 芯线结构：短节距绞合
- 加强层：芳纶编织加强层
- 外护套：耐磨、耐油橡胶或PUR护套
- 护套颜色：黑色
SPECIFICATION
| 物料编号 | 芯数及截面积 |
| MN6090105004 | 4G1.5 |
| MN6090105005 | 5G1.5 |
| MN6090105007 | 7G1.5 |
| MN6090105012 | 12G1.5 |
| MN6090105018 | 18G1.5 |
| MN6090105024 | 24G1.5 |
| MN6090105030 | 30G1.5 |
| MN6090105036 | 36G1.5 |
| MN6090105042 | 42G1.5 |
| MN6090205004 | 4G2.5 |
| MN6090205005 | 5G2.5 |
| MN6090205007 | 7G2.5 |
| MN6090205012 | 12G2.5 |
| MN6090205018 | 18G2.5 |
| MN6090205024 | 24G2.5 |
| MN6090205030 | 30G2.5 |
| MN6090205036 | 36G2.5 |
APPLICATION
The product is applied to the drum or reel equipment needed in bucket-wheel excavators and is used in ports, docks, metallurgy, steel, coal mines, power plants, cement plants and other places.
CERTIFICATION
