Reduced-diameter crane-specific cable
Small outer diameter, flexibility, bendability, high tensile strength, tear resistance, high wear resistance, good oil resistance, wear resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use

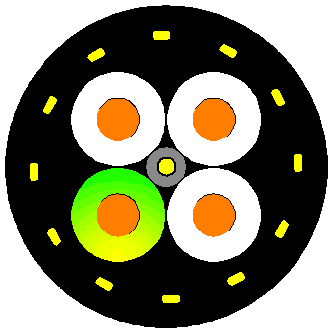

STRUCTURE
- Conductor：Fine-stranded Oxygen-free copper wire complies with GB/T 3956-2008 Class 5 standard.
- Insulation：Special elastomeric insulation
- Structure：Grouped short-lay length stranding,central/edge filled tensile strength member
- Inner Sheath：(if have)Special wear-resistant, oil-resistant PUR sheath
- Outer Sheath：Special wear-resistant, oil-resistant PUR sheath
- Reinforced layer：(if have)Aramid braided reinforcement layer
- Sheath Color：Black or yellow
SPECIFICATION
| Rated voltage | U0/U 0.6/1kV |
| Tested voltage | 3500V/5min |
| Minmum bending radius(Fixed laying) | 5 X D(Cable outside diameter) |
| Minmum bending radius(Mobile installation) | 10 X D(Cable outside diameter) |
| Operating Temperature(Fixed laying) | -40℃ to +90℃ |
| Operating Temperature(Mobile installation) | -30℃ to +90℃ |
| Flame Retardant Standard | Comply with IEC60332-1 standard |
| Maximum tension | 20N/mm² |
| Max.Speed | 180m/min |
APPLICATION
Suitable for wear-prone environments; connection and control cables for crawler cranes, reel machines, transport machines and conveying machinery. Also can be used as reeling and towing cables in drag chain systems, moving and retracting along the guide of the idler shaft or other similar devices. It can be applied in scenarios with high mechanical stress and with tension and torsion stresses.
